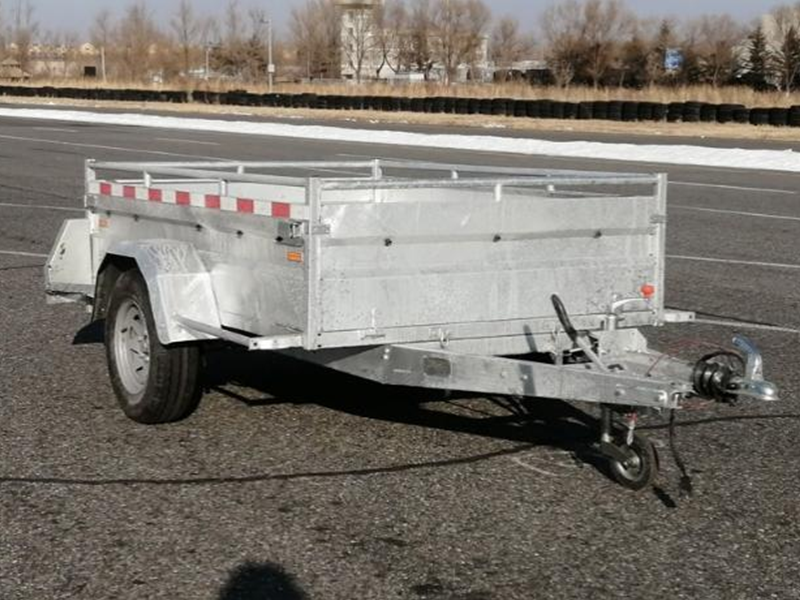

9010G1N Type Fence Plate Light Center Axle Trailer

Product Category

Products Show

Trailer And Trailer Accessories

Key Word

Sheet metal,stainless steel

Inquiry

Contact

Feature & Functions

Product Information

Parameter		Value
Overall dimensions	Length (mm)	2850
	Width (mm)	1750
	Height (mm)	950
Cargo compartment rail	Length (mm)	1700
	Width (mm)	1220
	Height (mm)	400
Weight	Vehicle curb weight (kg)	190
	Maximum design total mass (kg)	700
	Axle load (kg)	35/665
Additional Details	Number of axles	Single axis
	Braking system	N/A
	Departure angle (°)	≥15
	Minimum ground clearance (mm)	192
	Ball cover tractor diameter (mm)	50
	Trailer plug standard	7PIN

Features of the Trailer:

Central Axle Design

The axle is positioned near the center of gravity of the trailer, allowing most of the trailer's weight to be supported by itself. This results in a smaller vertical load transferred to the towing vehicle, ensuring smooth operation of the passenger train and high safety.

High-strength Plate after Stamping, Bending, and Welding

Enhanced compression resistance of cross and longitudinal beams, capable of withstanding greater torsional forces.

Rubber Torsion Suspension Axle

Independent suspension ensures safe and comfortable travel, quiet operation, ability to withstand high-impact forces, strong road adaptability, and maintenance-free.

Hot-dip Galvanized Chassis

Offers excellent corrosion resistance and a long lifespan.

Laminated Plywood Baseboard

Lightweight with high strength; can withstand outdoor elements without damage from wind and rain.

Usage: The trailer combined with a passenger car forms a passenger train, which can transport various goods. A single passenger car towing a light central-axle trailer can transport goods without significantly changing its energy consumption, expanding the functionality of the passenger car and improving its efficiency.

It can be used in industries such as manufacturing, agriculture, pastoral farming, livestock farming, market trading, self-driving travel, etc. It can transport small machinery and equipment, fruits, agricultural products, livestock and poultry, travel equipment, etc.

Provide various sheet metal processing for your industry and prepare for your choice
